IGBT模塊拆解!

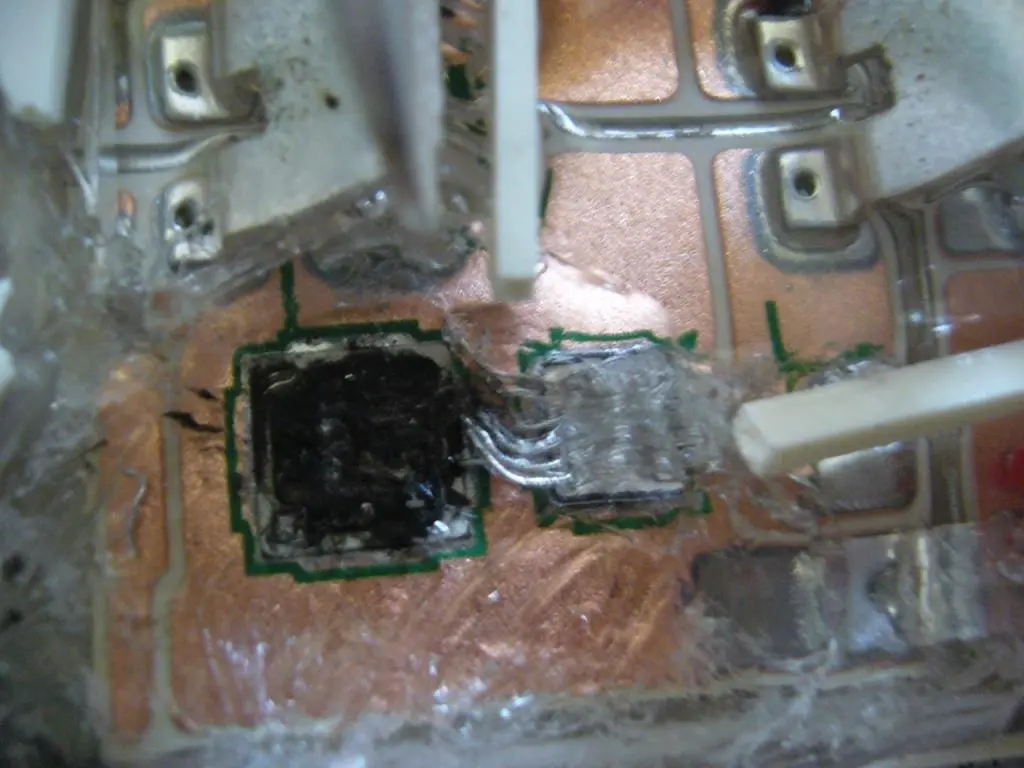

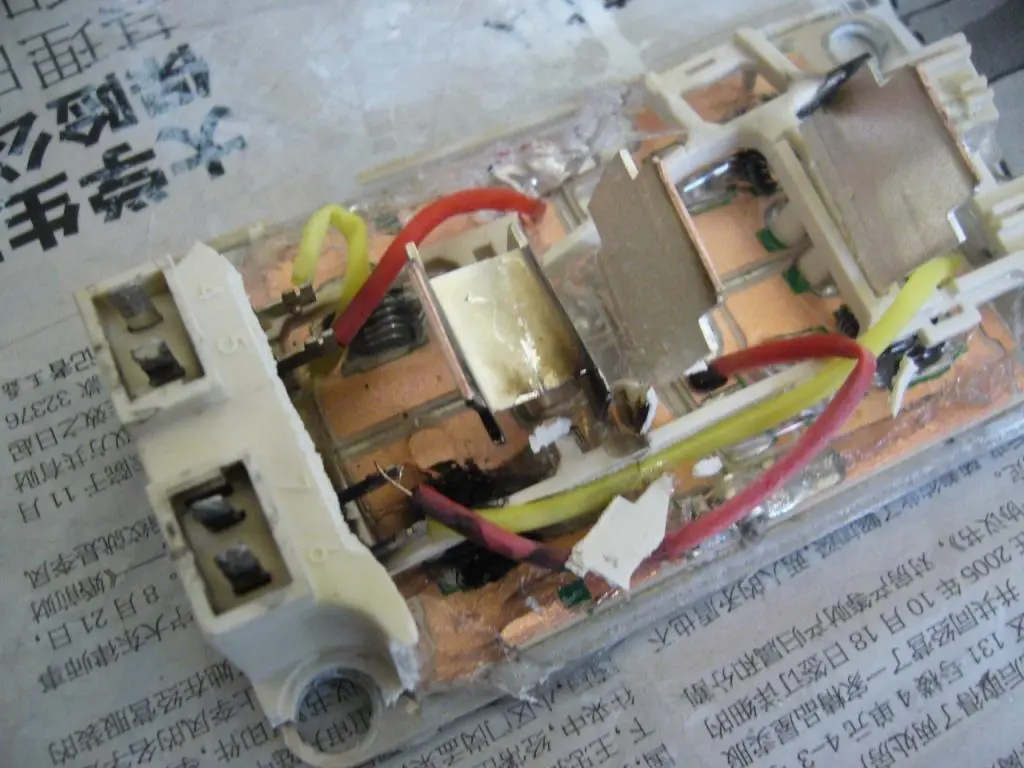

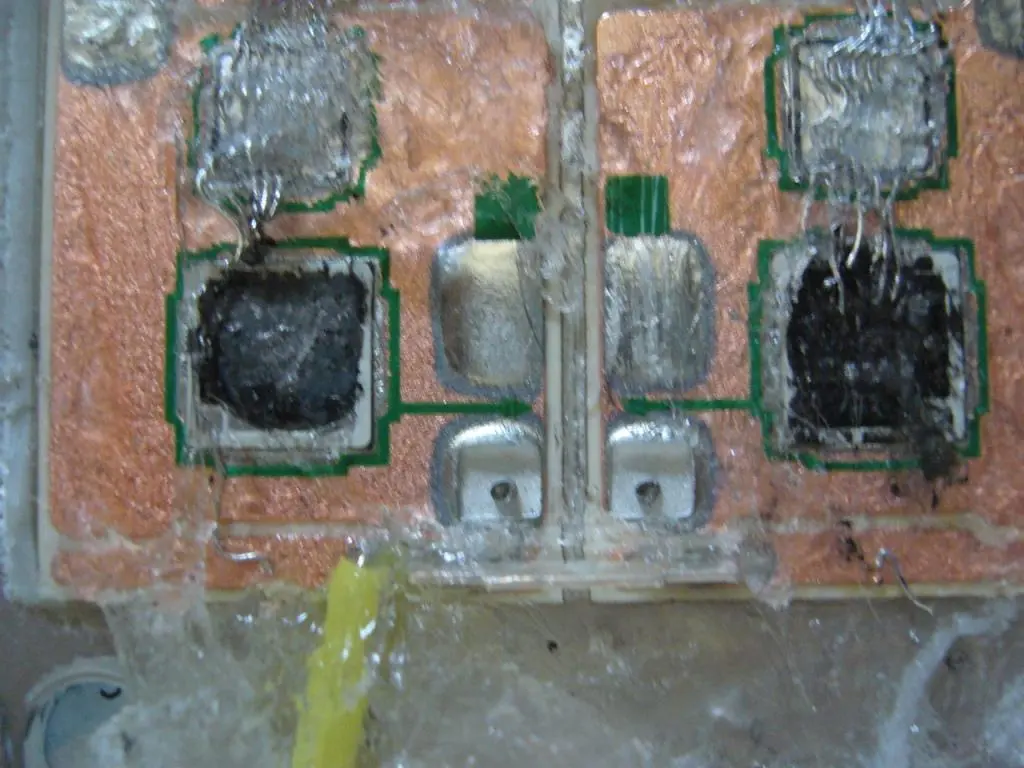

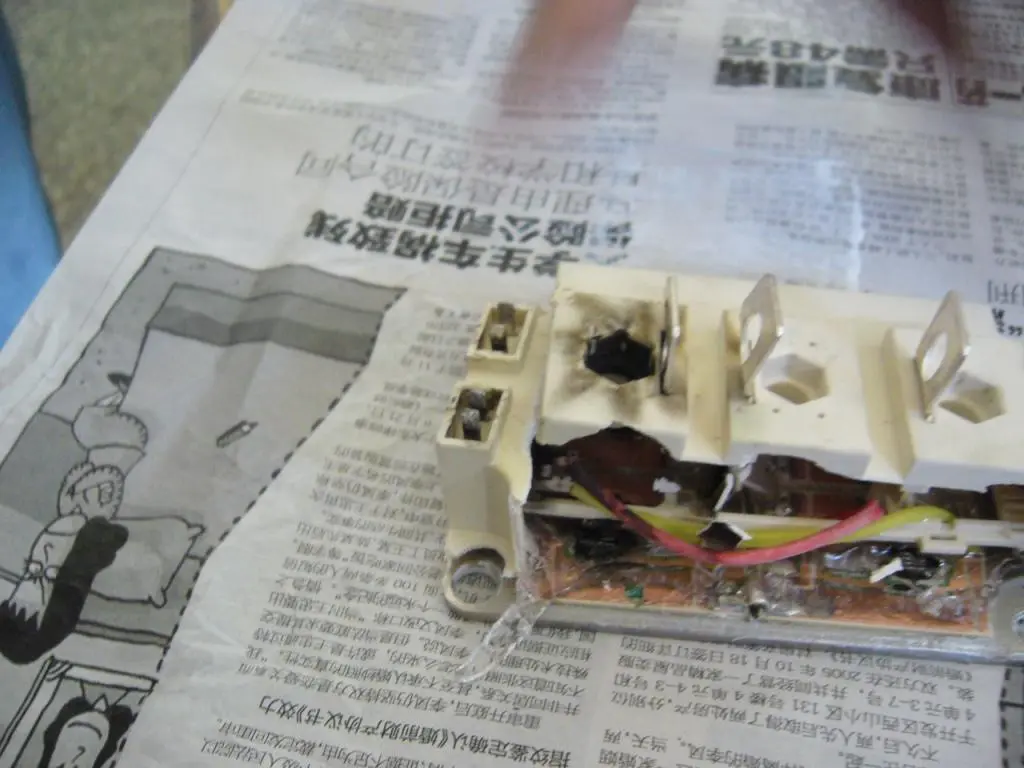

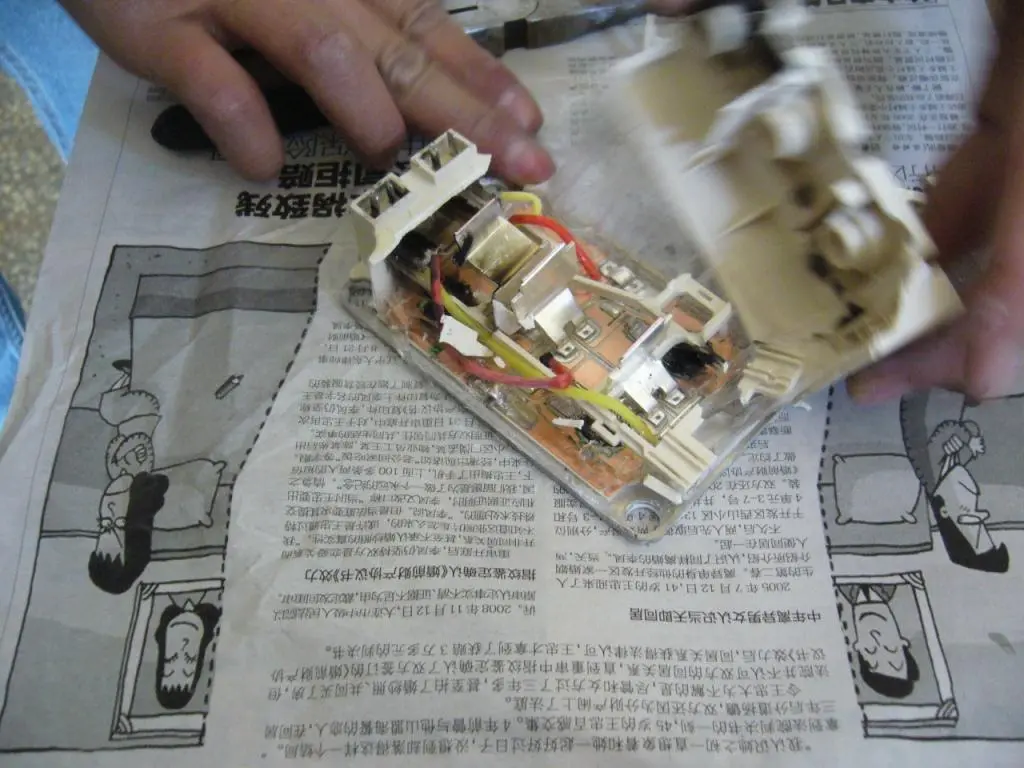

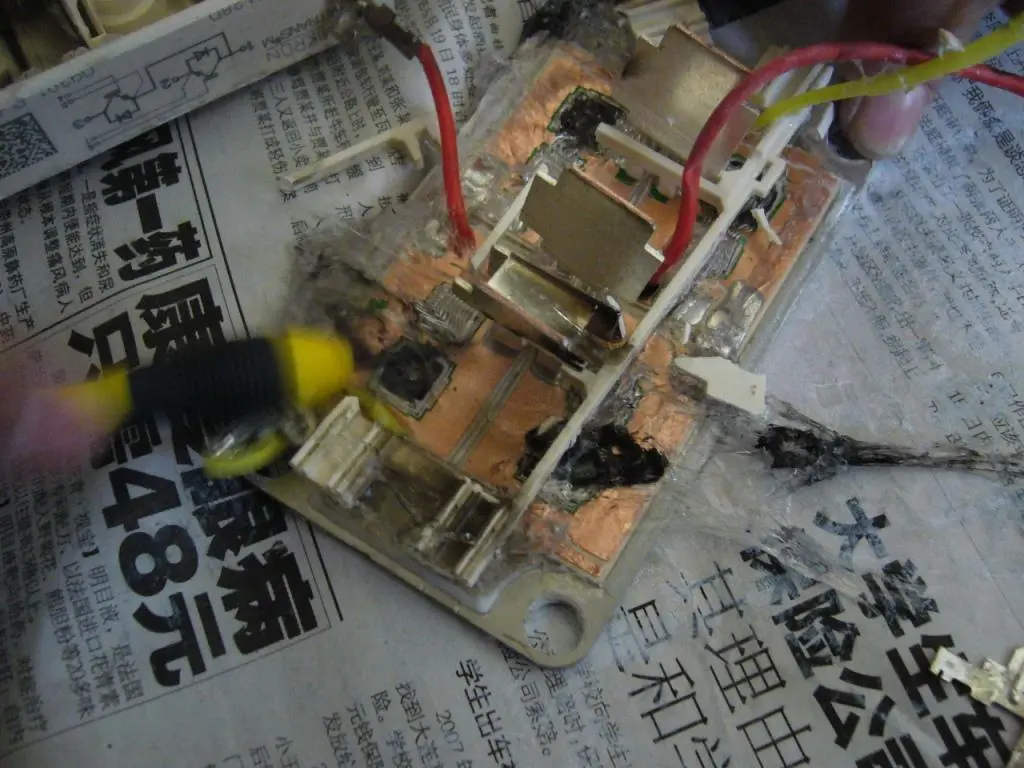

昨天做實驗的時候不知道為什么發生了炸管,把驅動電路板也給干壞了一部分.自己估計可能是RCD吸收的問題,以前沒有加吸收的時候沒出現炸管.今天特地拆開看看內部什么樣了!型號為SKM150GB128DE,需要的可以看看!
