請問大家誰有LED驅動調光方案,要求如下:
VIN:220-240Vac 50-60hZ
lin:170mA
pin:22W MAX
lout:350mAdc MAX
vout:48Vdc MAX
調光輸入:0-10Vdc or Poten47Kohm
如果那位有這樣的方案,請發到我的郵箱:dhp0522@163.com
急求LED驅動調光方案!!!!!!
全部回復(4)
正序查看
倒序查看
不訪試試
13823227840

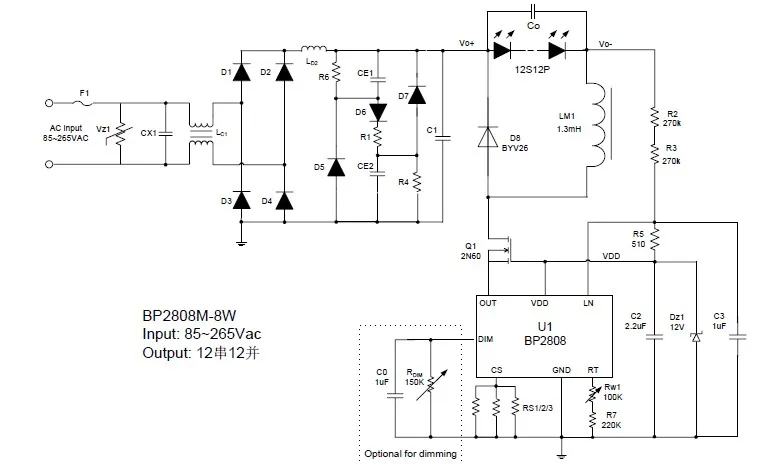

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/77/3327161242833856.jpg');}" onmousewheel="return imgzoom(this);">
13823227840
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/77/3327161242833856.jpg');}" onmousewheel="return imgzoom(this);"> 0
