@星星之火
效率不敢說95%,但不會低于90%.我是搞銷售的﹐不是RD﹐SCH沒有﹐每臺95元/PCS.歡迎大家來電.
隆種介紹我司的最新產品﹕
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/63/1332771204335874.jpg');}" onmousewheel="return imgzoom(this);">

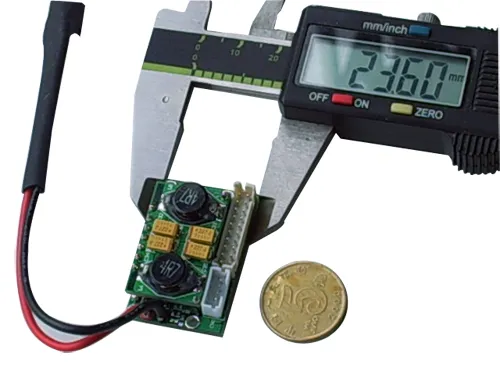

產品型號:PPT-12-90
DC/DC ATX power supply for automobile application, 12VDC input.
+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.
規格:
1.The smallest 12V DC to DC power supply
2. convertor in the world.
3.Adopt industrial solid capacitor, ideal for being used in
4. harsh evironment
5.High performance with high heat-stand feature, more realiable
6.Fanless DC-DC solution for 100% mute operating .
7.Compact design, special for mini-itx and 1U case.
Output Voltage Regulation
Output Min Load(A) MAX Load(A) Regulation
+12V 0.1 4.5 ±5%
+5V 0.1 4.5 ±5%
+3.3V 0.1 4.5 ±5%
-12V 0 0.1 ±15%
+5VSB 0.1 1 ±5%
參數:
1.Dimensions(mm): L37x W23.6x17H
2.DC Input: 12V
3.DC Output : 90W
4.Input Current: Max. 15A
5.Efficiency: above 92%
6.MTPF: 100,000H
7.Operating Temperature: 0℃ ~ 60℃
8.Storage Temperature: -40℃ ~ 70℃
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/63/1332771204335921.jpg');}" onmousewheel="return imgzoom(this);">
產品型號:PPM-12-120
DC/DC ATX power supply for automobile application, 12VDC input.
+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.
規格:
1.The smallest 12V DC to DC power supply
2. convertor in the world.
3.Adopt industrial solid capacitor, ideal for being used in
4. harsh evironment
5.High performance with high heat-stand feature, more realiable
6.Fanless DC-DC solution for 100% mute operating .
7.Compact design, special for mini-itx and 1U case.
Output Voltage Regulation
Output Min Load(A) MAX Load(A) Regulation
+12V 0.1 6 ±5%
+5V 0.1 5 ±5%
+3.3V 0.1 5 ±5%
-12V 0 0.1 ±15%
+5VSB 0.1 1 ±5%
參數:
1.Dimensions(mm): L43x W38x20H
2.DC Input: 12V
3.DC Output : 120W
4.Input Current: Max. 15A
5.Efficiency: above 92%
6.MTPF: 100,000H
7.Operating Temperature: 0℃ ~ 60℃
8.Storage Temperature: -40℃ ~ 70℃
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/63/1332771204335874.jpg');}" onmousewheel="return imgzoom(this);">
產品型號:PPT-12-90
DC/DC ATX power supply for automobile application, 12VDC input.
+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.
規格:
1.The smallest 12V DC to DC power supply
2. convertor in the world.
3.Adopt industrial solid capacitor, ideal for being used in
4. harsh evironment
5.High performance with high heat-stand feature, more realiable
6.Fanless DC-DC solution for 100% mute operating .
7.Compact design, special for mini-itx and 1U case.
Output Voltage Regulation
Output Min Load(A) MAX Load(A) Regulation
+12V 0.1 4.5 ±5%
+5V 0.1 4.5 ±5%
+3.3V 0.1 4.5 ±5%
-12V 0 0.1 ±15%
+5VSB 0.1 1 ±5%
參數:
1.Dimensions(mm): L37x W23.6x17H
2.DC Input: 12V
3.DC Output : 90W
4.Input Current: Max. 15A
5.Efficiency: above 92%
6.MTPF: 100,000H
7.Operating Temperature: 0℃ ~ 60℃
8.Storage Temperature: -40℃ ~ 70℃
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/63/1332771204335921.jpg');}" onmousewheel="return imgzoom(this);">
產品型號:PPM-12-120
DC/DC ATX power supply for automobile application, 12VDC input.
+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.
規格:
1.The smallest 12V DC to DC power supply
2. convertor in the world.
3.Adopt industrial solid capacitor, ideal for being used in
4. harsh evironment
5.High performance with high heat-stand feature, more realiable
6.Fanless DC-DC solution for 100% mute operating .
7.Compact design, special for mini-itx and 1U case.
Output Voltage Regulation
Output Min Load(A) MAX Load(A) Regulation
+12V 0.1 6 ±5%
+5V 0.1 5 ±5%
+3.3V 0.1 5 ±5%
-12V 0 0.1 ±15%
+5VSB 0.1 1 ±5%
參數:
1.Dimensions(mm): L43x W38x20H
2.DC Input: 12V
3.DC Output : 120W
4.Input Current: Max. 15A
5.Efficiency: above 92%
6.MTPF: 100,000H
7.Operating Temperature: 0℃ ~ 60℃
8.Storage Temperature: -40℃ ~ 70℃
