小弟要做一個1000W的家用逆變電源 求資料
那為大哥有資料 啊
全部回復(11)
正序查看
倒序查看
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/26/1107946700.gif');}" onmousewheel="return imgzoom(this);">Parts list for 3000 Watts "modified sine" Power Inverter 12 Volts to 230 Volts
----------------------------------------------------------------------------------
R1,R2,R31,R32 = 470k
R3,R10,R12,R18,R30,R36,R37,R38 = 100k
R4,R16 = Poti 50k
R5,R19 = 68k
R6 = 22 k
R7,R11,R13,R29 = 10k
R8,R22 = 2,2 k
R9,R15,R27,R28,R39 = 1M
R14 = 47k
R17 = 3,3M
R20 = 0,001 (see construction plan)
R21,R45 ... R64 = 100 Ohm
R23,R40,R41 = 1k
R24 = 150 Ohm
R33 = 0,1 Ohm / 17 Watt for 3000 Watt output max.
R34,R42 = 150 k
R35 = 470 Ohm
R43 = 4,7k / 0,5 Watt
R25,R26 = 10 Ohm
R44,R45,R46,R47 = 22 Ohm
C1 = 47nF (no ceramic capacitor - frequency stability!)
C2 = obsolete
C3,C25 = 4,7uF
C4,C9,C11,C24,C26 = 0,1uF
C5 = 10000 uF
C6,C7,C10,C14,C23 = 220uF
C8,C12,C20,C22 = 100uF/16Volt
C13 = 220uF/35 V (max. 25 Volt through charge pump)
C15,C16 = 47uF
C17,C18 = 10nF
C19,C21 = 1nF
D1,D2,D3,D5,D6,D9,D14,D15,D16,D18,D20 = 1N 4148
D4 = ZPD 12
D7 = ZPD 5,6
D17,D19 = ZPD 10
D8,D10,D11,D12,D13 = 1N 4001
IC1,IC9,IC10 = TL081
IC2 = CA3130E
IC12,IC13 = LM741
IC3,IC4,IC5,IC6 = 1 x 4093
IC7,IC8 = 1 x 4013
IC11 = 7812
T1,T4 = BCY59 or BC547 (T1 affects the pulse width regulator and thus voltage regulation!)
T2,T3,T11 = BCY79 or BC556
T5,T8,T10 = BS 250 (IRF9Z24N)
T6,T7,T9,T12 = 2 N 7000 (IRFZ24N)
T13... T28 = 16 x IRF 3205
LED1 red, overload protection
LED2 yellow, load detection
Tr1 = 3000 VA
Tr2 = small transformer 1 VA, 230V/6V
F1 = 250 A (100 Amperes for 1000 Watts output)
F2 = 75 degree celsius switch off
Relay1 = 12 V coil, 2 contacts
1 heat sink 200mm x 100 mm
----------------------------------------------------------------------------------
R1,R2,R31,R32 = 470k
R3,R10,R12,R18,R30,R36,R37,R38 = 100k
R4,R16 = Poti 50k
R5,R19 = 68k
R6 = 22 k
R7,R11,R13,R29 = 10k
R8,R22 = 2,2 k
R9,R15,R27,R28,R39 = 1M
R14 = 47k
R17 = 3,3M
R20 = 0,001 (see construction plan)
R21,R45 ... R64 = 100 Ohm
R23,R40,R41 = 1k
R24 = 150 Ohm
R33 = 0,1 Ohm / 17 Watt for 3000 Watt output max.
R34,R42 = 150 k
R35 = 470 Ohm
R43 = 4,7k / 0,5 Watt
R25,R26 = 10 Ohm
R44,R45,R46,R47 = 22 Ohm
C1 = 47nF (no ceramic capacitor - frequency stability!)
C2 = obsolete
C3,C25 = 4,7uF
C4,C9,C11,C24,C26 = 0,1uF
C5 = 10000 uF
C6,C7,C10,C14,C23 = 220uF
C8,C12,C20,C22 = 100uF/16Volt
C13 = 220uF/35 V (max. 25 Volt through charge pump)
C15,C16 = 47uF
C17,C18 = 10nF
C19,C21 = 1nF
D1,D2,D3,D5,D6,D9,D14,D15,D16,D18,D20 = 1N 4148
D4 = ZPD 12
D7 = ZPD 5,6
D17,D19 = ZPD 10
D8,D10,D11,D12,D13 = 1N 4001
IC1,IC9,IC10 = TL081
IC2 = CA3130E
IC12,IC13 = LM741
IC3,IC4,IC5,IC6 = 1 x 4093
IC7,IC8 = 1 x 4013
IC11 = 7812
T1,T4 = BCY59 or BC547 (T1 affects the pulse width regulator and thus voltage regulation!)
T2,T3,T11 = BCY79 or BC556
T5,T8,T10 = BS 250 (IRF9Z24N)
T6,T7,T9,T12 = 2 N 7000 (IRFZ24N)
T13... T28 = 16 x IRF 3205
LED1 red, overload protection
LED2 yellow, load detection
Tr1 = 3000 VA
Tr2 = small transformer 1 VA, 230V/6V
F1 = 250 A (100 Amperes for 1000 Watts output)
F2 = 75 degree celsius switch off
Relay1 = 12 V coil, 2 contacts
1 heat sink 200mm x 100 mm
0
回復
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/26/1107946818.gif');}" onmousewheel="return imgzoom(this);">純正弦波500W-3000W.0517-5231806

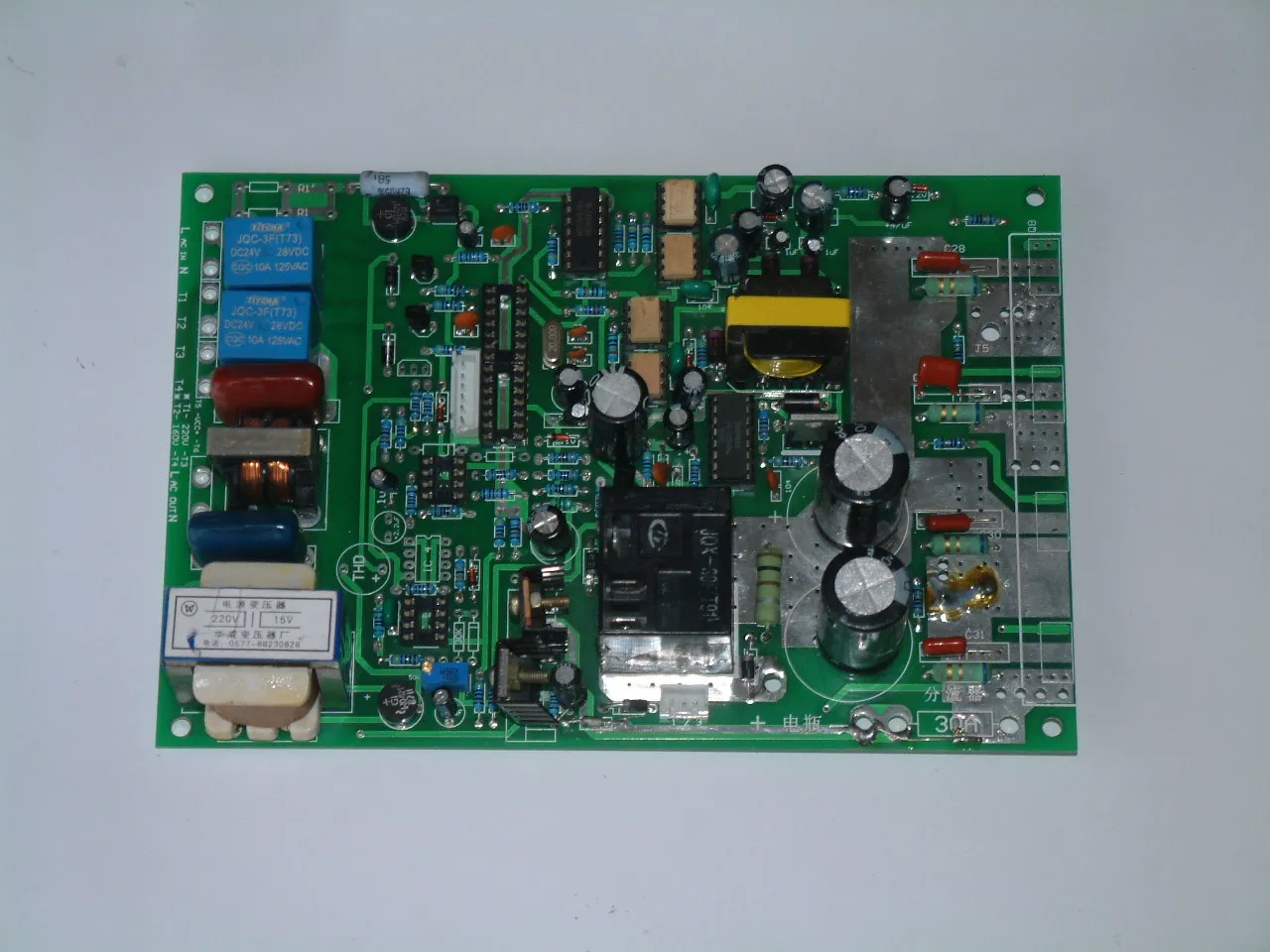

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/26/1108826409.jpg');}" onmousewheel="return imgzoom(this);">
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/26/1108826409.jpg');}" onmousewheel="return imgzoom(this);"> 0
回復
@大林電源
Partslistfor3000Watts"modifiedsine"PowerInverter12Voltsto230Volts----------------------------------------------------------------------------------R1,R2,R31,R32=470kR3,R10,R12,R18,R30,R36,R37,R38=100kR4,R16=Poti50kR5,R19=68kR6=22kR7,R11,R13,R29=10kR8,R22=2,2kR9,R15,R27,R28,R39=1MR14=47kR17=3,3MR20=0,001(seeconstructionplan)R21,R45...R64=100OhmR23,R40,R41=1kR24=150OhmR33=0,1Ohm/17Wattfor3000Wattoutputmax.R34,R42=150kR35=470OhmR43=4,7k/ 0,5WattR25,R26=10OhmR44,R45,R46,R47=22OhmC1=47nF(noceramiccapacitor-frequencystability!)C2=obsoleteC3,C25=4,7uFC4,C9,C11,C24,C26=0,1uFC5=10000uFC6,C7,C10,C14,C23=220uFC8,C12,C20,C22=100uF/16VoltC13=220uF/35V(max.25Voltthroughchargepump)C15,C16=47uFC17,C18=10nFC19,C21=1nFD1,D2,D3,D5,D6,D9,D14,D15,D16,D18,D20=1N4148D4=ZPD12D7=ZPD5,6D17,D19=ZPD10D8,D10,D11,D12,D13=1N4001IC1,IC9,IC10=TL081IC2=CA3130EIC12,IC13=LM741IC3,IC4,IC5,IC6=1x4093IC7,IC8=1x4013IC11=7812T1,T4=BCY59orBC547(T1affectsthepulsewidthregulatorandthusvoltageregulation!)T2,T3,T11=BCY79orBC556T5,T8,T10=BS250(IRF9Z24N)T6,T7,T9,T12=2N7000(IRFZ24N)T13...T28=16xIRF3205LED1red,overloadprotectionLED2yellow,loaddetectionTr1=3000VATr2=smalltransformer1VA,230V/6VF1=250A(100Amperesfor1000Wattsoutput)F2=75degreecelsiusswitchoffRelay1=12Vcoil,2contacts1heatsink200mmx100mm
請問3KVA的變壓器應該怎樣做,用多大的規格合適呢?
